RS02-AL-2x400D UV lamp electronic ballast

Availability:
Quantity:
Inquire Add to Basket

  • RS02 product series

  • 粤嘉电子

Ultraviolet lamp electronic ballast
Product model: RS02-AL-2x400D Lamp output current: Optional current: 3.0A, 3.3A, 3.8A
Input power: 480-840W Lamp output power: 2*230W-2*400W
Startup method:

Preheating start, suitable for frequent start

  1. Preheating optional time: 12S, 20S

  2. Optional currents for preheating: 2.5A, 3.0A, 3.5A, 4.0A
Power regulation range: Remote control of operating mode current (4-20mA), adjusting 60%-100% lighting power.
Product Specification Book: RS02-AL-2X400D- A1.0.pdf

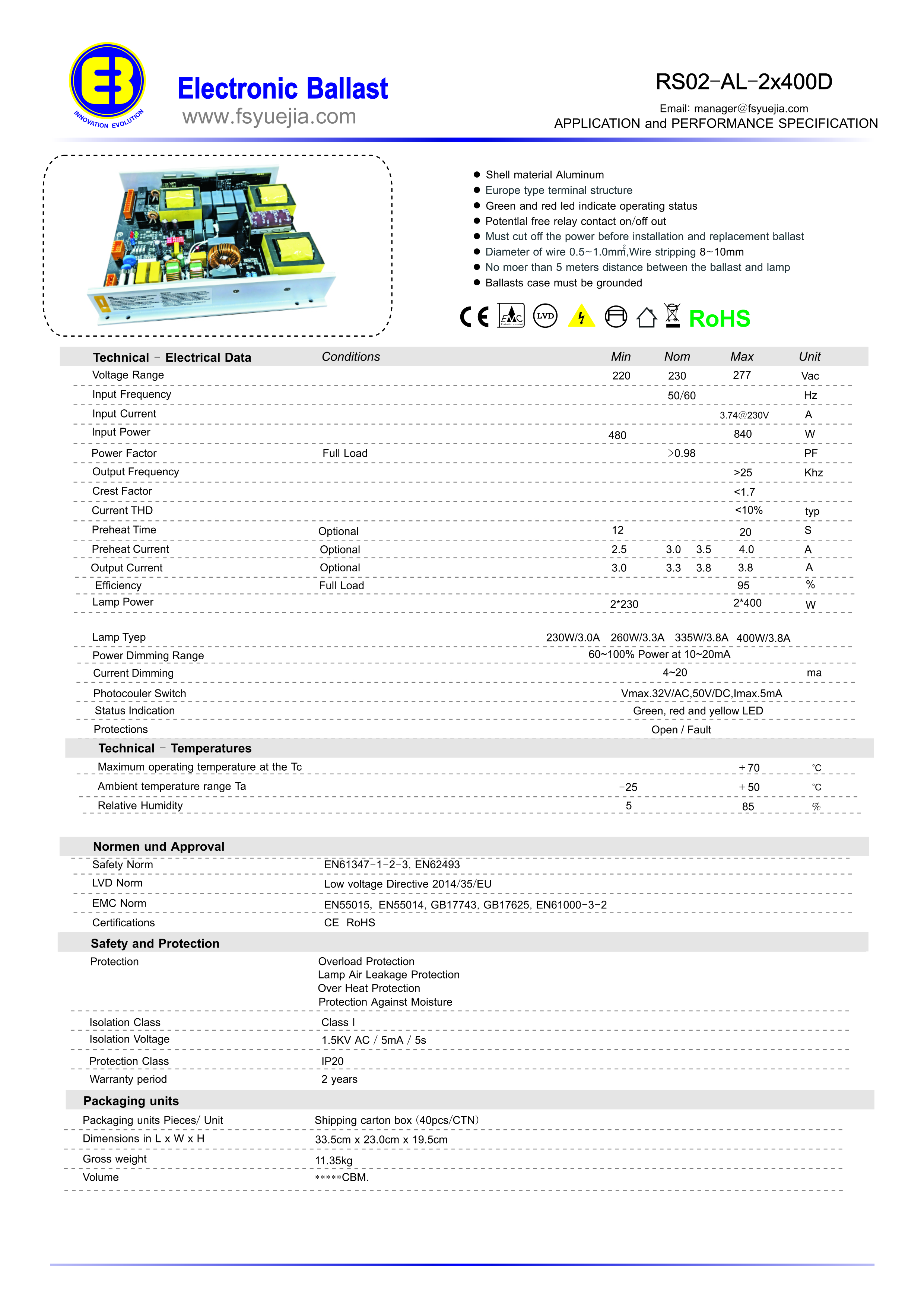

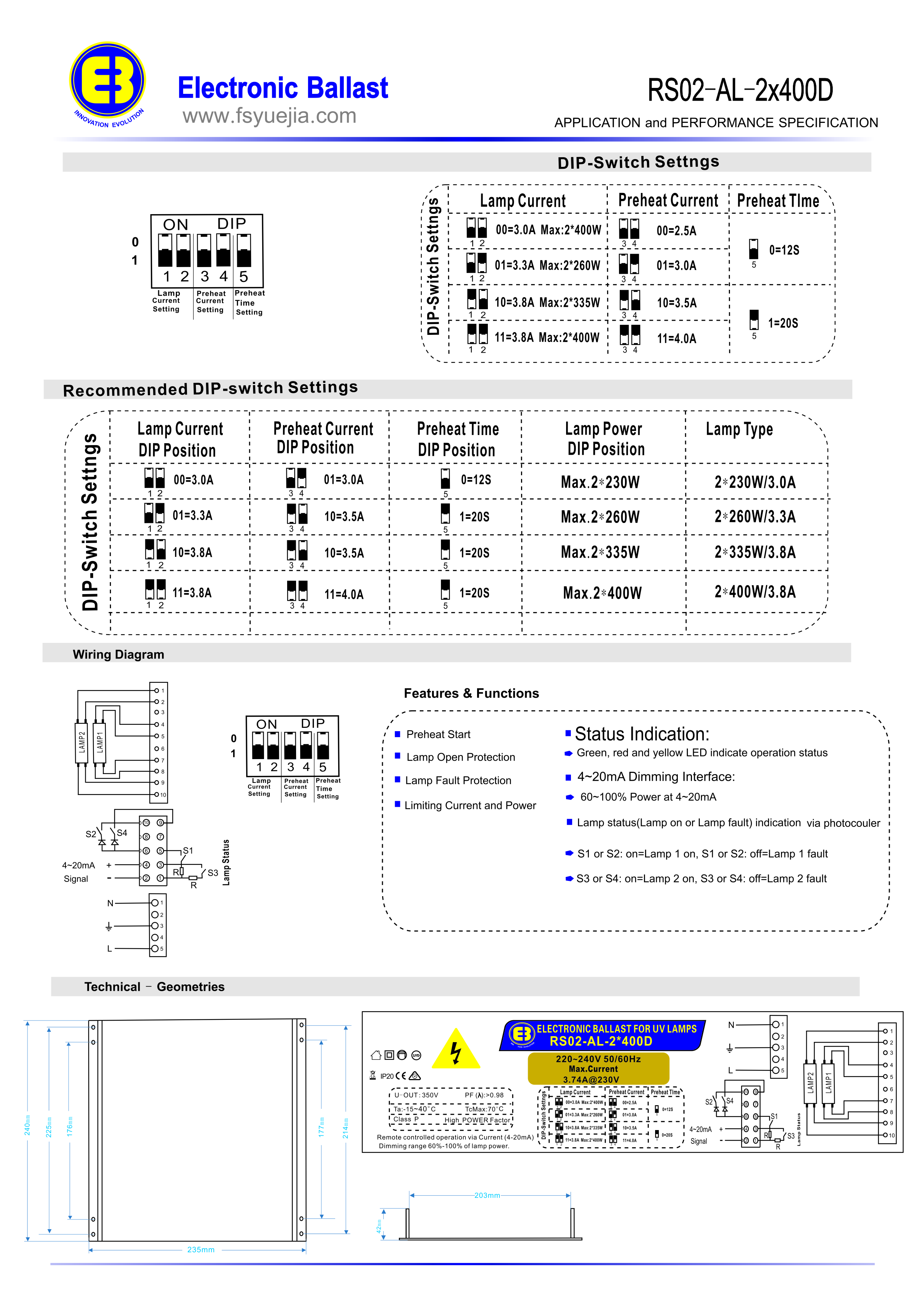

RS02-AL-2X400D- A1.0-1 RS02-AL-2X400D- A1.0-2
